Precision Injection Mold Manufacturing for Stable Production
We manufacture precision injection molds from customer drawings and 3D data, with design review, precision machining, fitting and assembly, mold trial, and dimensional inspection to support reliable mold quality and managed lead times.
✔Tight dimensional control
✔Structured mold manufacturing workflow
✔Mold trial & dimensional verification
Common Challenges in Injection Mold Projects

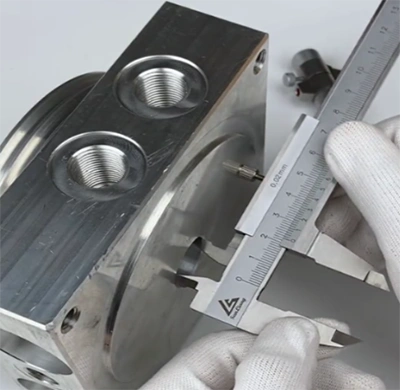

• Dimensional Instability

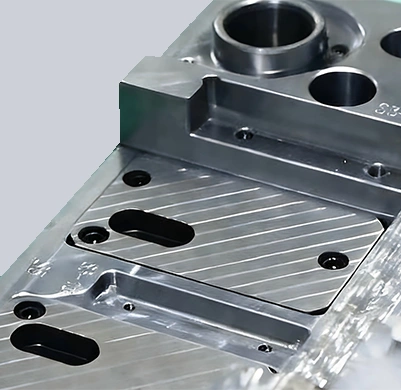

• Short mold life

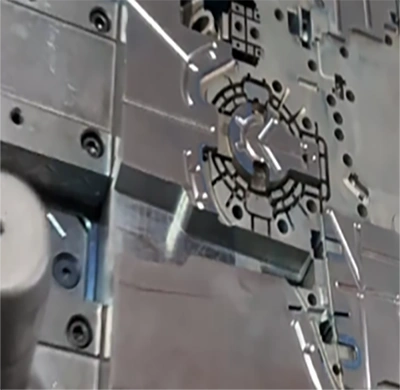

• Surface Finish Defects

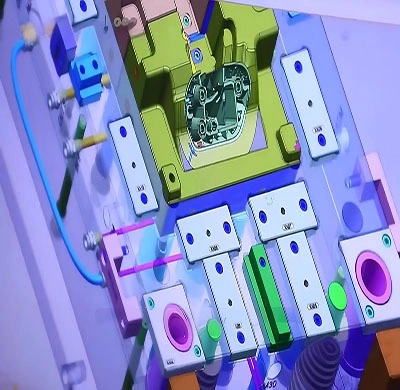

• Delays from Unclear Requirements
We focus on mold precision, structural reliability, and clear project requirements to support stable production.
What We Provide for Injection Mold Projects
Complex Mold Structures
Multi-cavity & Insert Molds
CNC, EDM, Wire EDM & Grinding
Mold Steel Selection
Tool Steel Selection
Fitting & Assembly
Component Fitting & Mold Assembly
Our Manufacturing Process
A structured workflow to ensure technical clarity, precision control, and stable mold performance.
01
Drawing & DFM Review
Feasibility & requirement review
02

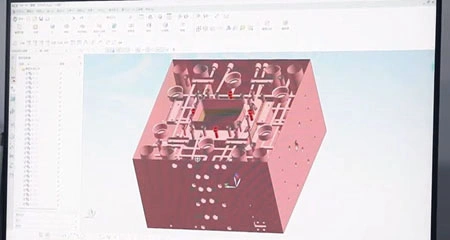

Mold Design
Structure design & validation
03

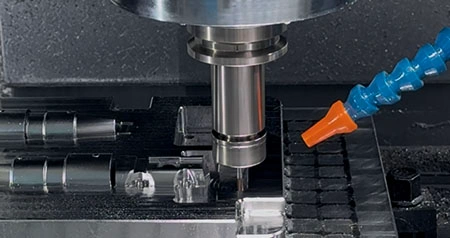

Precision Machining
CNC, EDM & supporting processes
04

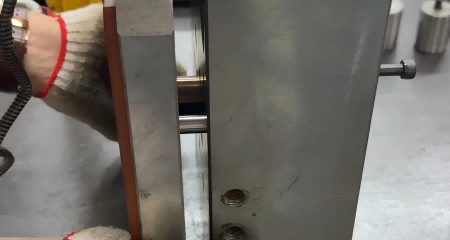

Fitting & Assembly
Component fitting & mold assembly
05
Mold Trial
Trial, sample check & adjustment
Inspection & Quality Control
___________________________________________
✔ In-Process Dimensional Checks
✔ Critical Component Inspection
✔ Final Dimensional Verification
✔ Mold Trial Verification

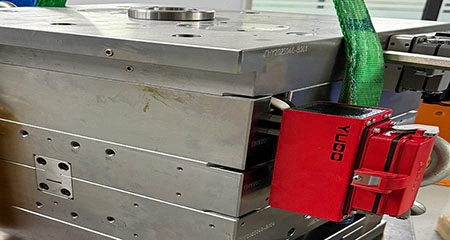

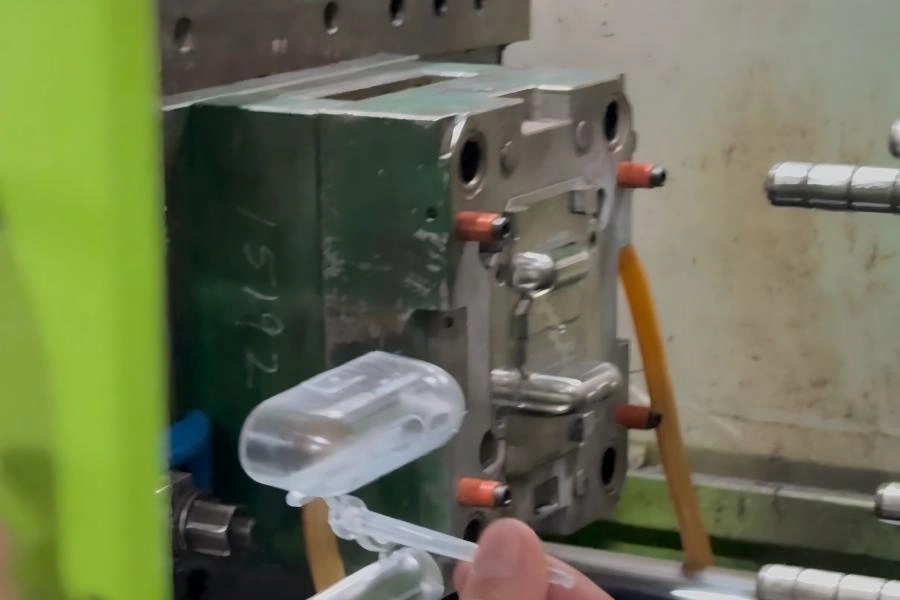

Mold Trial & Project Confirmation
Mold trials are used to evaluate mold function, molded part condition, and key project requirements before final confirmation.
1. Trial Sample Review
Trial samples are reviewed for filling condition, appearance, key dimensions, and other confirmed part requirements.
2. Feedback & Adjustment
Trial findings are reviewed and mold adjustments are made where needed to address confirmed issues before the next verification.
3. Final Confirmation
Mold function, trial results, and agreed project requirements are checked before the project moves to final delivery.
Typical Injection Mold Applications
We support injection mold projects for precision plastic components used in optical, connector, and structural applications.

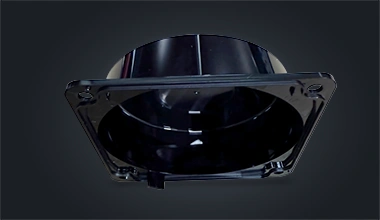

Optical Components

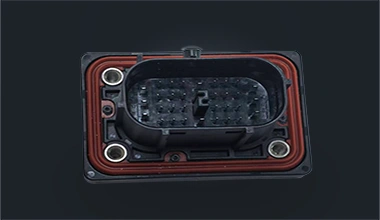

Electronic Connectors

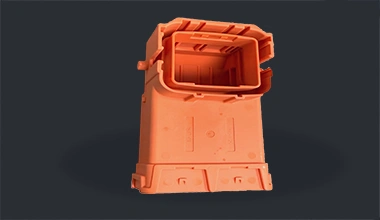

Structural Parts
What to Send for a Mold Quote
Provide the available drawings and key project requirements so we can review the mold requirements and prepare a quotation.
2D / 3D Drawings
Part drawings, CAD data, or available mold information
Plastic Material
Required resin or specified material grade
Expected Quantity
Estimated production quantity or project demand
Critical Dimensions
Key dimensions, tolerances, and fitting requirements
Surface & Appearance
Texture, polishing, appearance, or other surface requirements
Mold Requirements
Mold life, cavity requirement, or other project-specific requirements
Ready to Discuss Your Mold Project?
Send us your drawings and key project requirements. We will review the information and prepare a quotation.
