Precision Mold Components
Custom Manufacturing
Drawing-Based Manufacturing for Precision Mold Parts
We manufacture custom precision mold components from customer drawings, with machining, EDM, grinding, and dimensional inspection selected according to part geometry and critical requirements.
Core & Cavity Inserts
Precision inserts for mold forming areas, manufactured to drawing and fitting requirements.

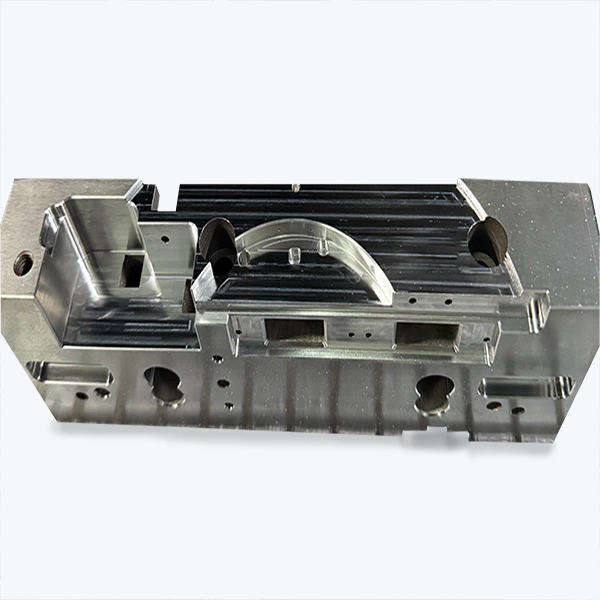

Complex Mold Components
Custom mold components with complex geometry manufactured according to customer drawings.
Precision Inserts
Drawing-based precision inserts for mold, tooling, and assembly applications.
Custom Tooling Components
Non-standard tooling components manufactured for project-specific functional requirements.
Capabilities Overview
Manufacturing capabilities for custom mold components and precision tooling parts based on customer requirements.

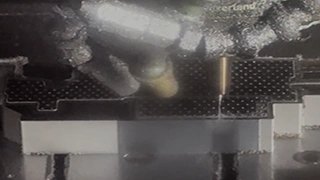

Precision Tolerance
Tolerances up to ±0.002 mm can be achieved on specific critical dimensions, depending on part geometry, material, and process requirements.

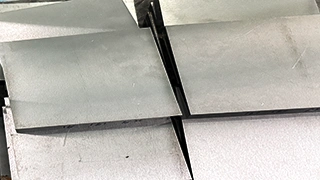

Material Options
Tool steels, stainless steels, aluminum, cemented carbide, and other specified materials can be used according to part and project requirements.

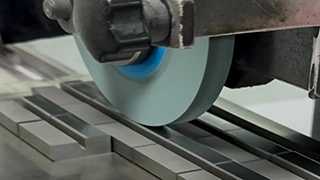

Surface Finish
Grinding, polishing, EDM finishing, and other suitable processes are applied according to the required surface condition and functional areas.
Custom Manufacturing
Non-standard mold components are manufactured from customer drawings, samples, or project-specific requirements.
Why Choose Us
Stable Quality
Process planning and in-process checks
Final dimensional inspection based on part requirements
Critical Dimension Control
Critical dimensions and fitting surfaces reviewed
Functional features controlled to drawing requirements
Multi-Process Coordination
CNC, EDM, wire EDM, and grinding coordinated as needed
Inspection selected according to part geometry and requirements
Project-Based Support
Reviewed according to drawings, material, and critical dimensions
Adapted to project-specific component requirements
Typical Mold Components We Manufacture
Drawing-based mold components for forming, assembly, tooling, and project-specific requirements.

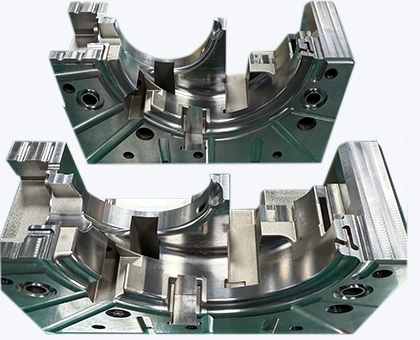

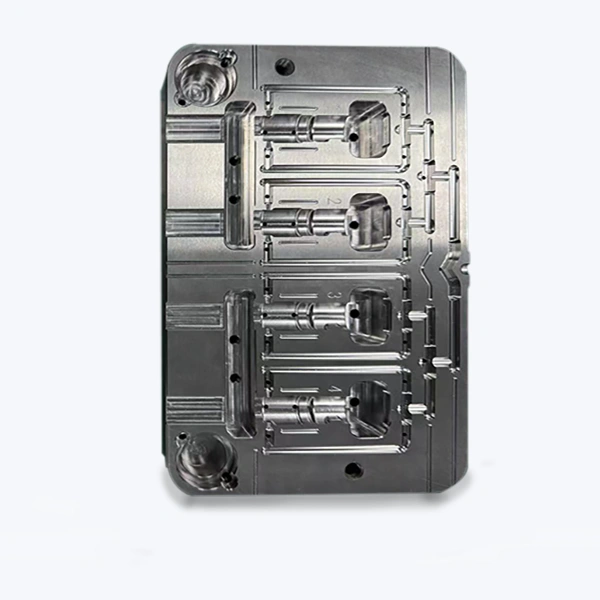

Core & Cavity Inserts
For forming areas where dimensional accuracy, fitting, and surface condition are critical.
Critical Dimensions · Precision Forming
Manufactured from customer drawings for cavity, core, and insert applications.

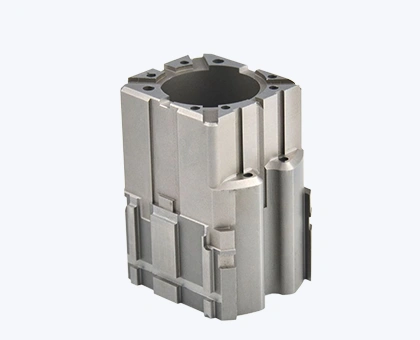

Precision Inserts & Functional Components
For mold assemblies where fitting, positioning, and functional features must meet drawing requirements.
Assembly Fit · Functional Features
Suitable for precision inserts and other drawing-based functional mold components.

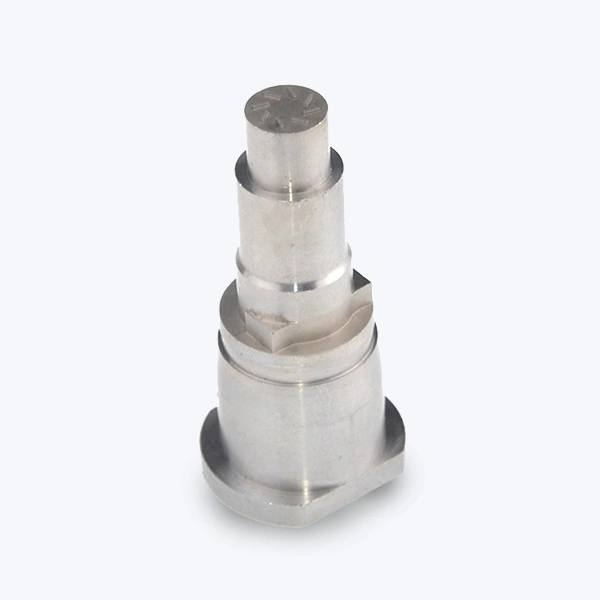

Custom Mold & Tooling Components
For non-standard mold and tooling applications with project-specific geometry and functional requirements.
Custom Geometry · Project-Specific Requirements
Manufactured from customer drawings for special mold and tooling component requirements.
Coordinated Manufacturing for Precision Mold Components
Precision mold components may require more than one machining process depending on part geometry, material, critical dimensions, and surface requirements. CNC machining, EDM, wire EDM, electrode manufacturing, and precision grinding are selected and combined according to the customer drawing.

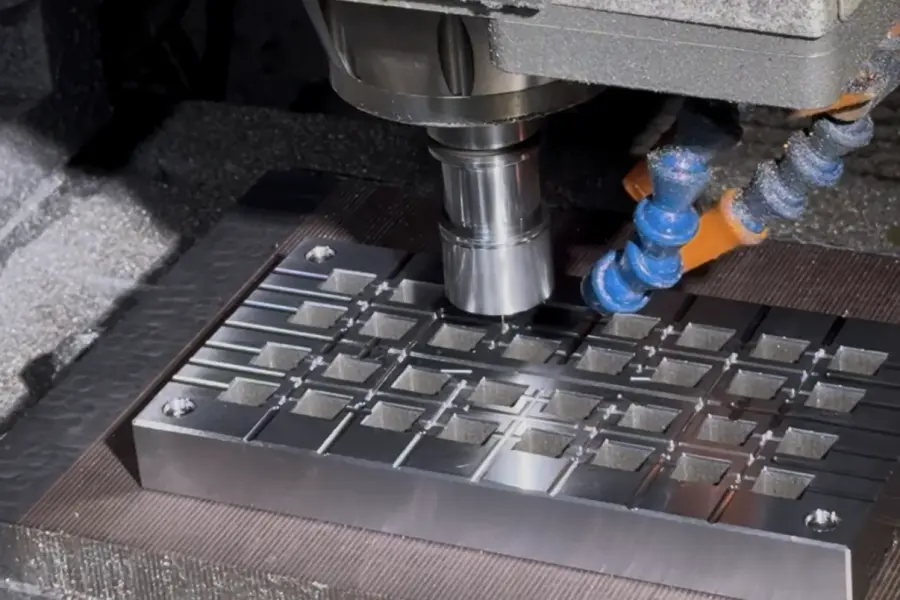

CNC Machining
Used to establish main part geometry, pockets, holes, profiles, and other machined features defined by the drawing.

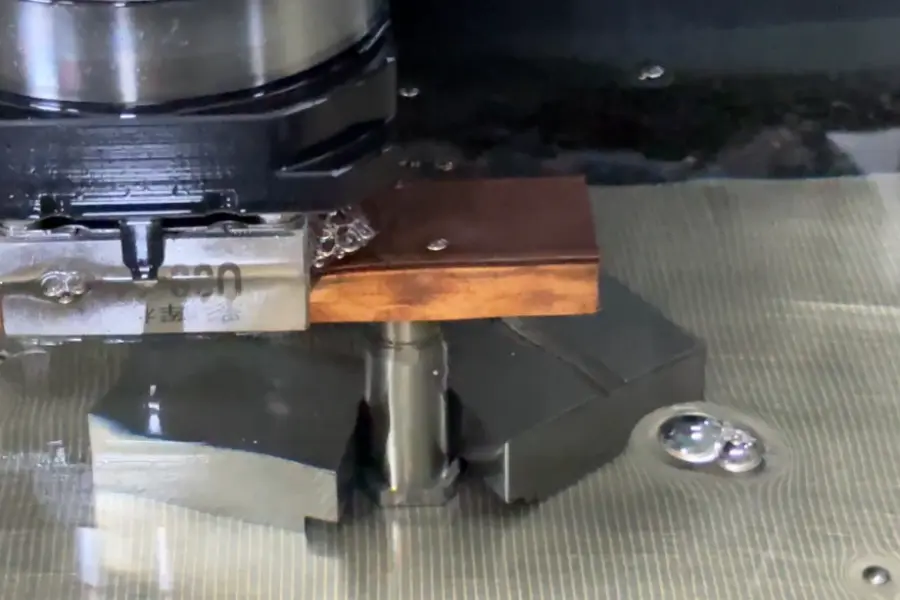

EDM & Electrode Manufacturing
Used for deep cavities, narrow features, and internal details where conventional cutting may not be suitable. Electrodes are manufactured according to the required EDM geometry.

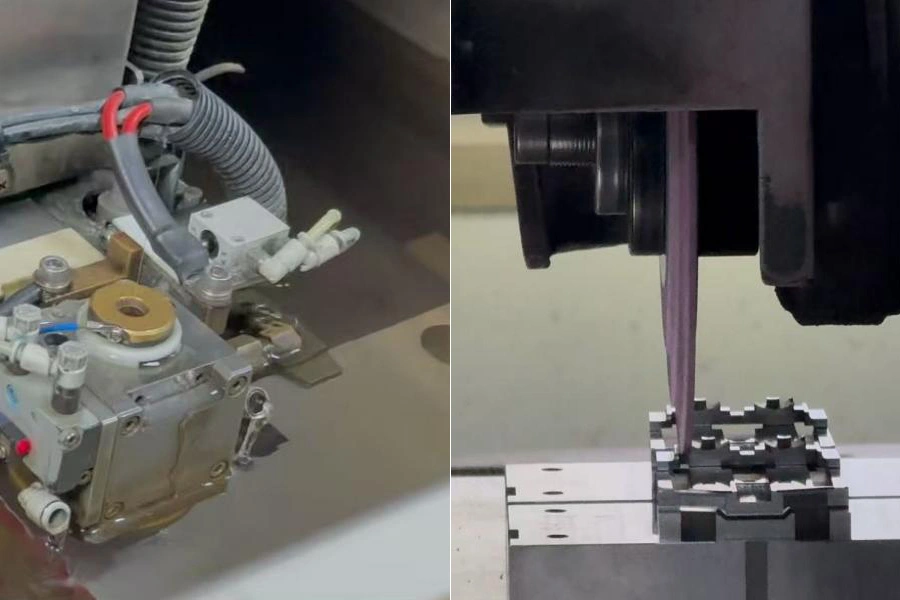

Wire EDM & Precision Grinding
Wire EDM supports precision profiles, slots, and through-features, while precision grinding is used where flatness, thickness, fitting surfaces, or additional dimensional control are required.
Dimensional Inspection
Inspection methods are selected according to the customer drawing, part geometry, and critical features. Key dimensions, fitting areas, and functional features are verified using suitable dimensional inspection methods, including CMM where appropriate.
Drawing-Based Verification
Critical dimensions, fitting surfaces, and functional features are identified from the customer drawing and checked according to their importance to part fit and function.
CMM Inspection
CMM is used where coordinate-based measurement is appropriate to verify dimensions, feature positions, and geometric relationships on precision mold components.
Final Dimensional Verification
Before release, required dimensions are checked against the customer drawing using suitable measuring methods for the features being verified.

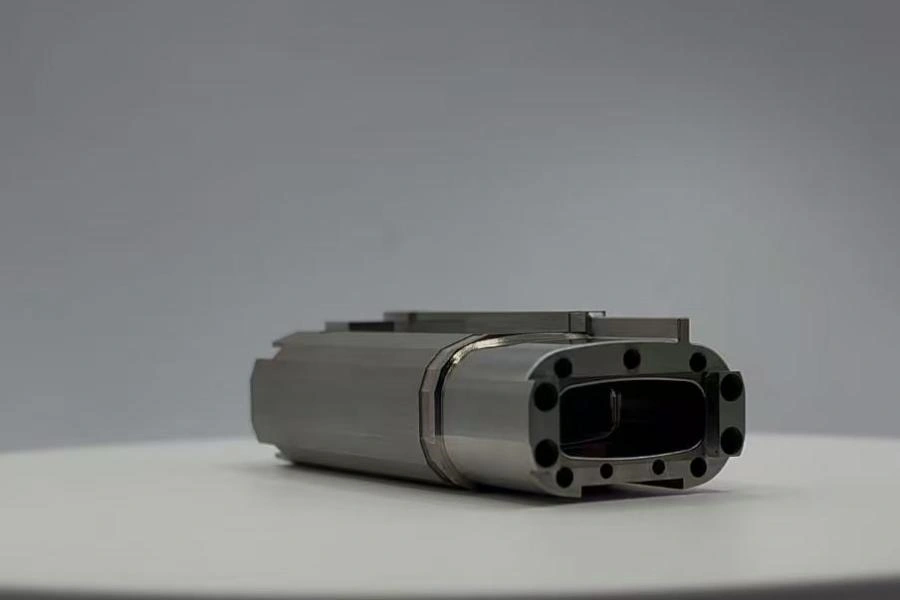

Replacement Mold Components
When mold components become worn, damaged, or need to be replaced, the replacement part must match the existing mold in critical dimensions, fitting surfaces, material requirements, and functional features.
Drawing & Requirement Review
Replacement requirements are reviewed against the available drawing, material specification, critical dimensions, fitting areas, and functional features of the component.
Critical Fit & Dimension Control
Fitting surfaces, locating features, critical dimensions, and other interface areas are given particular attention so the replacement component can be evaluated for compatibility with the existing mold.
Manufacturing & Final Verification
The required machining processes are selected according to the replacement component, and critical features are dimensionally verified against the confirmed requirements before release.
Ready to Start Your Project?
Send us your drawing, material, quantity, and key requirements. We will review the part requirements and prepare a quotation.
STEP / PDF / Sample / Project Requirements
