What Affects Surface Finish in Machined Parts?

Surface finish is an important part of machined component quality. It affects not only the appearance of the part, but also how it performs in assembly, sealing, friction contact, coating, and long-term use. In some projects, surface finish is mainly a visual requirement. In others, it directly influences function and reliability.

For this reason, surface finish should not be treated as a minor detail at the end of production. From our experience, it is influenced by multiple factors throughout the machining process, from material selection and tooling condition to cutting stability and final handling. Understanding what affects surface finish can help improve machining consistency and reduce rework in both prototype and batch production.

Why Surface Finish Matters

The required surface condition depends on the part application. For example, cosmetic parts may need a cleaner visual appearance. Mating parts may require smoother contact surfaces. Sealing areas may depend on better finish quality to function correctly. In some cases, the surface also affects coating adhesion or later treatment performance.

A more stable surface finish can help support:

• Better appearance quality
• Improved assembly fit
• Reduced friction in contact areas
• More reliable sealing performance
• Better consistency in later finishing processes

For both suppliers and buyers, surface finish is also an important indicator of process control. In our machining work, we often find that customers who require precision CNC machining are concerned not only with dimensional accuracy, but also with how consistent the final surface condition remains across the full batch.

1) Material Type

Different materials respond differently to cutting, and this directly affects the final surface condition. Aluminum, stainless steel, and copper do not machine in the same way. Some materials cut more cleanly, while others may create more resistance, burrs, or heat.

Material-related factors that affect finish include:

• Hardness
• Toughness
• Ductility
• Internal stress
• Cutting behavior

For example, a material that is prone to work hardening or burr formation may need more careful control in finishing operations. Even when using the same machine and tool, the surface result may vary significantly depending on the material.

In our experience, material selection should always be considered together with machining requirements, especially when the part also has tight tolerances or appearance expectations.

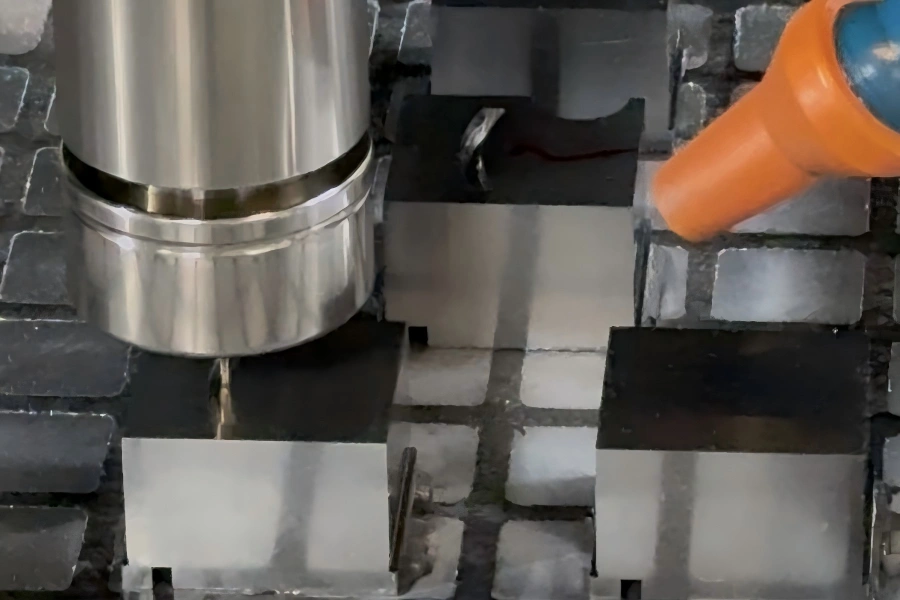

2) Tool Sharpness and Tool Condition

Tool condition is one of the most direct influences on surface finish. A sharp and suitable tool usually produces a cleaner cut, while a worn tool may drag, vibrate, or leave visible marks on the machined surface.

As tool wear increases, the surface may begin to show:

• Rougher texture
• Inconsistent cutting marks
• Higher burr formation
• Reduced dimensional consistency
• Local surface damage in more difficult materials

For stable surface quality, tool wear should be monitored as part of normal process control rather than only after clear defects appear. In practical machining work, we usually treat tooling condition as a key factor for both surface quality and dimensional stability, because these two results are often closely connected.

3) Cutting Parameters

Cutting speed, feed rate, and depth of cut all affect how the material is removed and how the surface is formed. If the cutting parameters are not well balanced, the surface may show roughness, chatter marks, or unstable texture.

Surface finish is often influenced by:

• Excessive feed rate
• Unsuitable cutting speed
• Unstable finishing allowance
• Too much cutting load in finishing operations
• Inconsistent path strategy

In many parts, good surface finish depends on a finishing process that is different from rough machining. The final pass usually requires more control and should not simply repeat roughing conditions.

From our experience, better surface quality often comes from a controlled finishing strategy rather than from trying to improve the result only at the end of the process.

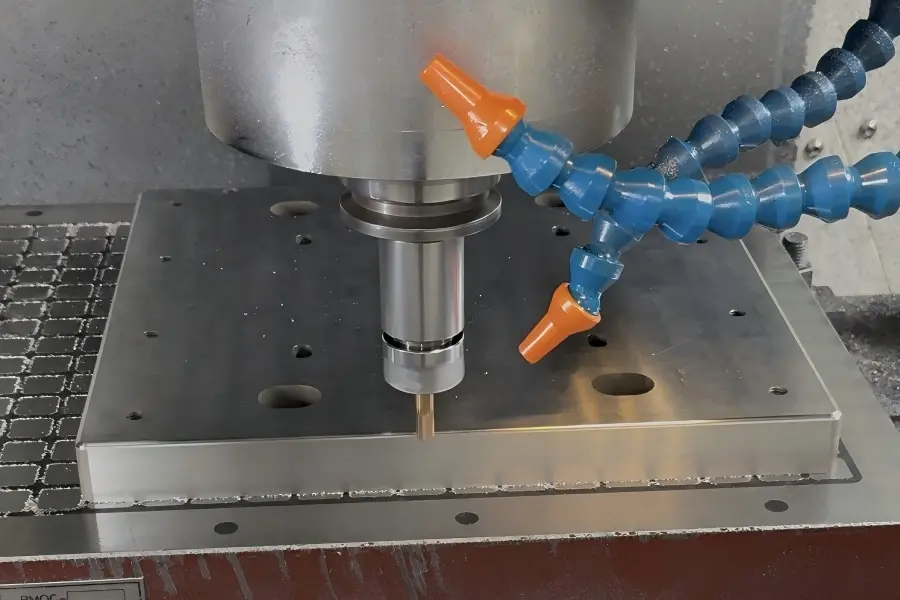

4) Machine Rigidity and Stability

Even if the tool and parameters are suitable, poor machine stability can still affect surface quality. Vibration, spindle instability, or weak fixture support may all lead to visible marks or inconsistent finish.

This is especially important for:

• Thin-wall parts
• Long tools
• Deep cavities
• Large surface areas
• Higher precision components

If the machine or setup lacks rigidity, the tool may not cut the surface consistently. This can result in chatter marks, waviness, or local irregularity.

In our machining process, stable machine condition is one of the basic requirements when customers expect both good surface finish and repeatable production quality.

5) Fixturing and Part Support

Surface finish can also be influenced by how the workpiece is held during machining. If the part moves slightly under cutting force or if clamping deforms the component, the cutting action may become unstable.

A better fixture strategy should help provide:

• Stable positioning
• Proper support in weak areas
• Reduced vibration
• Controlled clamping force
• Repeatable setup between parts

This is especially important for soft materials, thin sections, and precision parts where both appearance and size must remain stable.

In many cases, we find that fixture planning has a direct influence on the final surface result, especially for custom machined parts with more complex geometry or thinner wall sections.

6) Heat Generation During Machining

Heat affects more than tool life. It can also influence the way material is removed and how the finished surface appears. Excessive heat may increase tool wear, create local material changes, and reduce surface consistency.

Heat-related problems are more likely when:

• Cutting conditions are too aggressive
• Tool wear is already present
• The material does not dissipate heat easily
• Finishing passes are not well controlled

Managing cutting heat is particularly important in materials such as stainless steel, where thermal effects can influence both finish and dimensional stability. In practice, we usually consider heat control as part of the overall machining strategy rather than only a tooling issue.

7) Burrs and Edge Quality

In many machined parts, surface finish is judged not only by the flat or curved surfaces, but also by how clean the edges appear. Burrs, edge tearing, or uneven transitions can reduce the overall quality impression even if the main surface looks acceptable.

Clean edge quality usually depends on:

• Suitable tool condition
• Correct cutting direction
• Material behavior
• Controlled finishing strategy
• Whether deburring is integrated into the process

For customer-facing parts or assembly parts, edge condition can be just as important as the measured surface roughness. In our experience, good surface quality is often the result of controlling both the machined surface itself and the surrounding edge condition at the same time.

8) Post-Processing and Final Handling

Surface finish is not determined only by the machine cut. Post-processing steps such as deburring, polishing, cleaning, anodizing, or coating can also influence the final appearance and function.

At the same time, improper handling after machining may damage an otherwise good surface through scratches, contamination, or impact during storage and transport.

For this reason, achieving a good finish often depends on full-process control from machining to final handling. Even when the machining result is good, poor handling after production can still reduce the final quality level seen by the customer.

Conclusion

Surface finish in machined parts is affected by many connected factors, including material type, tool condition, cutting parameters, machine stability, fixturing, heat generation, edge control, and post-processing. A good finish is usually the result of a stable and well-planned machining process rather than a single adjustment.

When surface quality matters, it is important to evaluate the part as a whole, including both appearance and functional requirements. Strong process control can help improve finish consistency, reduce rework, and support better overall product quality.
